Glo-Protek B30HB (Auto Underbody Coat)
High-build, resin-modified, pigment-enhanced bituminous anti-corrosive coating for automobile underbody
At Glo-Protek B30HB is a high-build, resin-modified, pigment-enhanced bituminous
anticorrosive coating for automobile underbody applications. This specially modified
product is suited for hot and humid tropical weather conditions and direct exposure to
moisture. Glo-Protek B30HB cures to form a tough abrasion-resistant anti-corrosive coat
that provides excellent weather protection to steel surfaces by blocking direct moisture
effectively. Glo-Protek B30HB is also resistant to mild acids, alkalis and chemicals.
Glo-Protek B30HB provides excellent protection against steel corrosion for interior as well as exterior industrial structures, open weather structures, automobile underbody coating, pipelines, hydraulic structures, marine installations, etc. Glo-Protek B30HB offers an easy-to-use, high-performance as well as cost-effective anti-corrosive solution.
Features:
- High-performance coating for protection of steel surfaces
- Suitable for industrial structures, open weather structures, automobile underbody coating, pipelines, hydraulic structures, marine installations etc.
- High-build
- Resin-modified
- Pigment-enhanced
- Excellent weather protection
- Excellent abrasion-resistant tough coat
- Excellent water resistance
- Suitable for hot and humid tropical weather conditions
- Good resistance to acids and alkalis
- Good resistance to chemicals
Technical Data
| Colour | Black |
|---|---|
| Finish | Matt to Semi-glossy |
| Volume solids | Approx. 55% |
| Recommended DFT | 75-100 microns for underbody applications |
| Corresponding Wet Film Thickness | 135-180 microns |
| Coverage | 7.25 m2/l @ 75 microns DFT 5.35 m2/l @ 100 microns DFT |
| Drying Time* (normal air drying) | Surface dry - 4 to 6 hours Hard dry - 24 hours (under normal air drying) Full cure - 7- 8 days (under normal air drying) |
| Overcoating Interval (normal air drying) | Minimum 24 hours (under normal air drying) |
| Flash point | Above 30°C |
| Shelf Life (in cool and dry place) | Up to 8 months so long as the material is stored in sealed containers under warehouse storage conditions. |
Directions for Use
Surface Preparation & Substrate Condition
- The steel surface should be roughened and cleaned by blast-cleaned to Swedish specification Sa 2½ grade minimum for optimum adhesion. Alternatively, the surface could be prepared to Swedish specification St 2 or St 3 grade by using power tools along with manual wire brushing to thoroughly remove loose rust/scales. Remove grease, oil and dirt. A rough, clean, dry and contamination-free surface is essential for optimum adhesion. Suitability of a primer use should also be determined for a particular surface and type of application before use.
- Also any previous paint, dirt and surface contaminations should be removed by scrubbing or using high-pressure water jets.
- The substrate temperature should be between 10°C and 50°C, and also the relative humidity should not be in excess of 90%.
Method of Application
By Brush or Roller
Recommended thinner : T-42B
Volume of thinner : 0 - 15 %

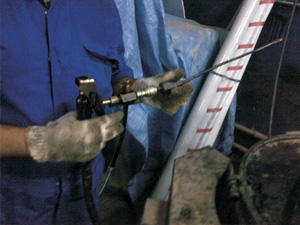

By Airless spray
Recommended thinner : T42B
Volume of thinner : 0 - 15 %
Nozzle orifice : 0.53 - 0.66 mm
Nozzle pressure : 3000–3500 psi (20.68 – 24.13 MPa, or 204 - 238 atm
or 211-246 kg/sq. cm)
Packing and Storage
Packing : 20-liter drums
Storage : Store in sealed containers under cool and dry conditions.
Store in accordance with local regulations.
